CIRS 602三维躯干模体

CIRS 602三维躯干模体，CIRS 602躯干模体

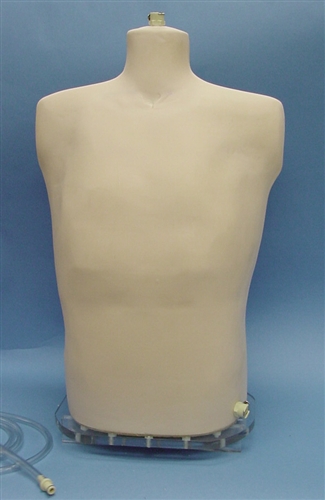

CIRS 602三维躯干模体，CIRS 602躯干模体旨在为医学成像应用提供一个平均男性躯干的精确模拟。可移除的器官使TLD，造影剂等的放置具有灵活性。用于制造模体的环氧材料在40keV至20MeV的能量范围内提供最佳的组织模拟。

CIRS 602三维躯干模体，CIRS 602躯干模体仿真模拟了诊断能量范围内实际组织的物理密度和线性衰减在2％以内。

每个CIRS 602三维躯干模体，CIRS 602躯干模体包含可移动的器官。包括的器官是肺，心脏，肝脏，胰腺，肾脏和脾脏。模体的下半部分包含一个可移动的软质团块材料，模拟50％脂肪和50％肌肉组织的混合物。

这个插入物用于在模体直立时保持器官的位置。为了便于取出，食团被包在一个屏幕袋中。模拟肌肉材料层肋骨和脊柱。

外部信封模拟30％脂肪和70％肌肉组织的混合物。模体在底部由丙烯酸板密封。模拟流体的水或血液可以用来填充所有的间隙空隙。

CIRS 602三维躯干模体，CIRS 602躯干模体特点和好处
在诊断能量范围内准确模拟实际组织的物理密度和线性衰减在2％以内
包含可移除的器官，包括肺，心脏，肝脏，胰腺，肾脏和脾脏。
模体的下半部分包含一个可移动的软质团块材料，模拟50％脂肪和50％肌肉组织的混合物。
模拟肌肉材料层肋骨和脊柱。
外部信封模拟30％脂肪和70％肌肉组织的混合。
底部用亚克力板密封。
模拟流体的水或血液可以用来填充所有的间隙空隙。

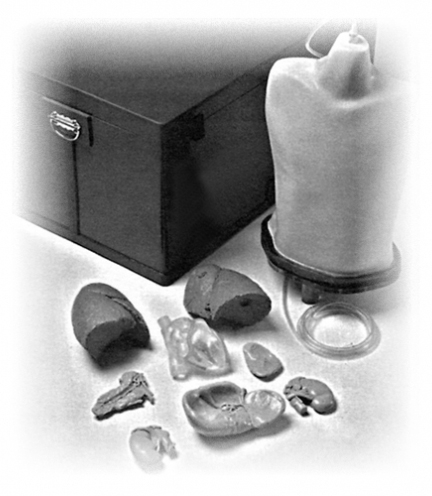

CIRS 602三维躯干模体，CIRS 602躯干模体包括的材料
具有骨骼结构的组织等效躯干腔
可移动的肺，心脏，肝脏，胰腺，脾脏和肾脏
管道，耦合器，真空泵和硬件
泡沫衬里的手提箱
技术手册

CIRS 602三维躯干模体，CIRS 602躯干模体保修信息
4年保修







The CIRS Anthropomorphic Torso Phantom is designed to provide an accurate simulation of an average male torso for medical imaging applications. The removable organs enable flexibility in the placement of TLD’s, contrast agents, etc. The epoxy materials used to fabricate the phantom provide optimal tissue simulation in the 40 keV to 20 MeV energy range.

The phantom simulates the physical density and linear attenuation of actual tissue to within 2 percent in the diagnostic energy range.

Each phantom contains removable organs. Included organs are lungs, heart, liver, pancreas, kidney, and spleen. The lower portion of the phantom contains a removable soft bolus material simulating a mix of 50 percent adipose and 50 percent muscle tissue.

This insert is used to maintain the position of the organs when the phantom is placed upright. For ease of removal, the bolus is enveloped in a screen-bag. Simulated muscle material layers the rib cage and vertebral column.

The exterior envelope simulates a mix of 30 percent adipose and 70 percent muscle tissue. The phantom is sealed at the bottom by an acrylic plate. Water or blood mimicking fluid can be used to fill all the interstitial voids.

Removable lungs, heart, liver, pancreas, kidney and spleen

Flexibility in TLD placement

Optimal tissue simulation in the diagnostic energy range and up to 20 MeV

Physical density and linear attenuation within 2 percent of actual tissue

Interstatial voids fillable with water or blood-mimicking fluid

Includes foam-lined carry case, user guide and 48-month warranty
